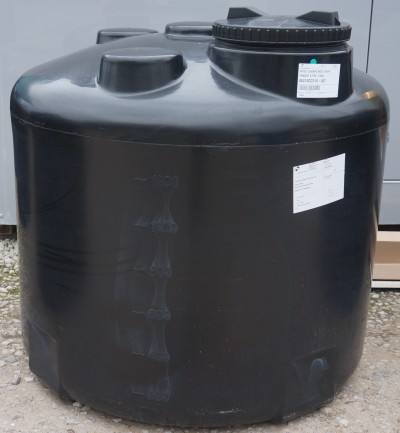

Static Storage Tanks

  • Range of one piece M.D.P.E moulded tanks suitable for use with a range of chemicals, manufactured to BSEN 13575:2005

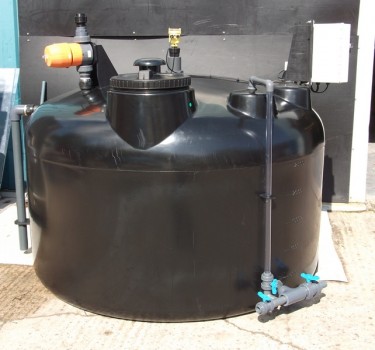

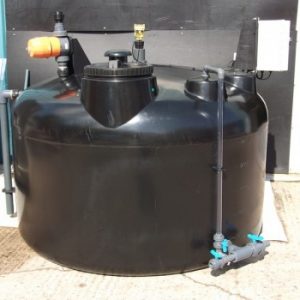

  • Tanks have a reinforced top surface for supporting electrical mixing equipment, black screw lids and graduated scale moulded into tank.
  • Maximum specific gravity is 1.5
  • Maximum Temperature: 40◦C.
  • Please note that these tanks are designed to operate under Atmospheric pressure only, please consider installing a suitably sized vent when installing furniture on the tanks.
  • Tanks supplied in Black polyethylene as standard
  • Tanks up to 5000 litre normally on stock

KEY FEATURES

Working Temperature: Maximum of 40◦C

Standard:  Manufactured to BSEN 13575:2005

Applications:  Storage and mixing of chemicals

Availability : On Stock up to 5000 litre.

Details

CSS REFCAPACITY(litres)Ø mmHeight mmCAP diameterTank WeightPriceEnquireDownload
TV1515001350128040043kg£576.00Enquire
TV2020001350166640059kg£609.00Enquire
TV3030001535191340072kg£765.00Enquire
TV50500019502000400130kg£967.00Enquire

Documents

TitleDescriptionDownload
CAD DrawingDownload
CAD Drawing 3000litreDownload
8000Lt Storage TankDownload
10000Lt Storage tankDownload
