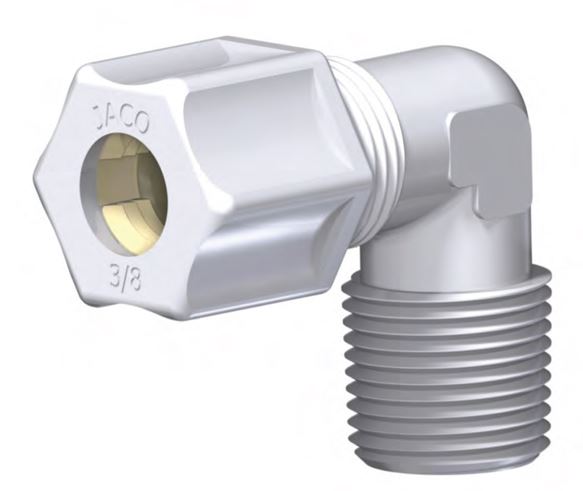

JACO PP Male Tube Elbow

  • Tubing Connectors. (Polypropylene).
  • Polypropylene compression fittings offer good chemical resistance and are unaffected by most weak acids and alkalies, at temperatures less than 80◦C they offer good resistance to organic solvents .Pressure rating: up to 50psi for standard fittings, 150psi with  stainless gripper.
  • Other fittings available please contact us if not listed below.

KEY FEATURES

Working Temperature: -34◦C to +100◦C

Pressure Rating: standard fittings 50 psi, with stainless steel gripper 150psi

Applications: Range of fittings suit all types of tubing

Construction:  Standard fittings all Polyproylene

Advantages: Low cost and offer good resistance to corrosions and chemicals

Availability:  Ex Stock for majority including fittings not listed in our “core” selection below

Details

CSS REFDESCRIPTIONPRICE
40-04-04-P-0Male Tube Elbow ¼" OD Tube to ¼" NPT - Standard Gripper£3.90
40-04-04-P-SGMale Tube Elbow ¼" OD Tube to ¼" NPT - Steel Gripper£4.33
40-06-06-P-0Male Tube Elbow ⅜" OD Tube to ⅜" NPT - Standard Gripper£4.67
40-06-06-P-SGMale Tube Elbow ⅜" OD Tube to ⅜" NPT - Steel Gripper£5.21
40-08-08-P-0Male Tube Elbow ½" OD Tube to ½" NPT - Standard Gripper£5.24
40-08-08-P-SGMale Tube Elbow ½" OD Tube to ½" NPT - Steel Gripper£5.86
40-04-02-P-0Male Tube Elbow ¼" OD Tube to ⅛" NPT - Standard Gripper£3.85
40-04-02-P-SGMale Tube Elbow ¼" OD Tube to ⅛" NPT - Steel Gripper£4.31
40-06-04-P-0Male Tube Elbow ⅜" OD Tube to ¼" NPT - Standard Gripper£4.55
40-06-04-P-SGMale Tube Elbow ⅜" OD Tube to ¼" NPT - Steel Gripper£5.08

Documents

TitleDescriptionDownload
Jaco Selection & Fitting GuideDownload
