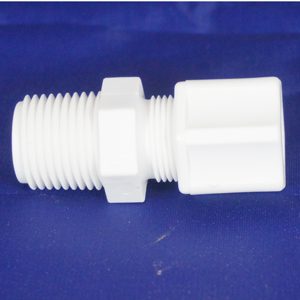

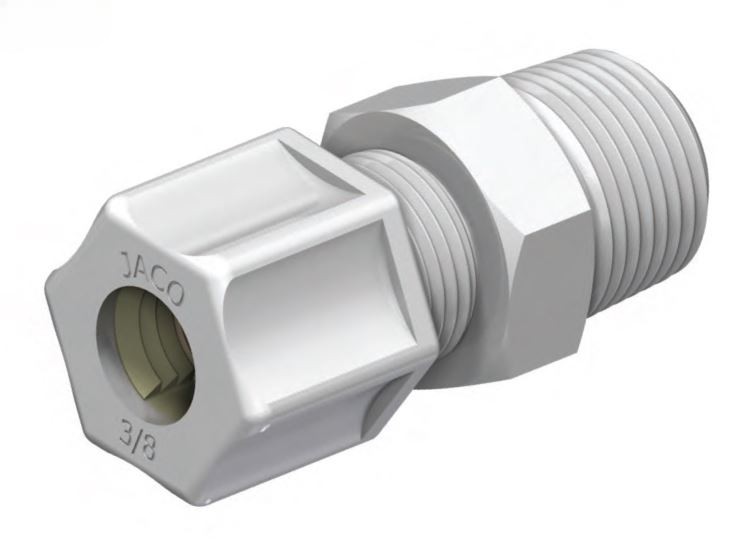

JACO PP MALE CONNECTORS

  • Tubing Connectors. (Polypropylene).
  • Polypropylene compression fittings offer good chemical resistance and are unaffected by most weak acids and alkalies, at temperatures less than 80◦C they offer good resistance to organic solvents .
  • Pressure rating: up to 50psi for standard fittings, 150psi with  stainless gripper.
  • Other fittings available please contact us if not listed below.

KEY FEATURES

Working Temperature: -34◦C to +100◦C

Pressure Rating: Standard fittings 50 psi, with stainless steel gripper 150psi

Applications: Range of fittings suit all types of tubing

Construction:  Standard fittings all Polyproylene

Advantages: Low cost and offer good resistance to corrosions and chemicals

Availability:  Ex Stock for majority including fittings not listed in our “core” selection below



Details

CSS REFDESCRIPTIONPRICEEnquire
10-04-04-P-O¼" od Tube x ¼" NPT Male connector£1.94Enquire
10-06-06-P-O3/8" od Tube x 3/8" NPT Male connector£2.59Enquire
10-08-08-P-O½" od tube x ½" NPT Male connector£3.42Enquire
10-12-12-P-SG¾" od tube x ¾" NPT Male connector£7.76Enquire
10-12-08-P-SG3/4" od tube x 1/2" NPT Male Connector£7.43Enquire

Documents

TitleDescriptionDownload
CSS-JACO-Data-specifications-SheetJACO specifications sheetDownload
