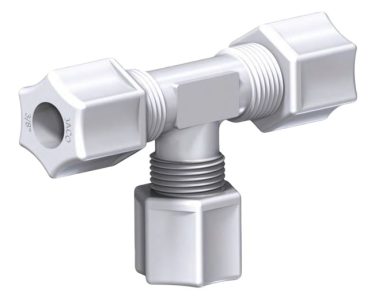

Jaco PP Union Tee

CSS JACO connnector PP Union Tee supplied by CSS
  • CSS JACO connnector PP Union Tee supplied by CSS
  • CSS JACO connnector PP Union Tee specification sheet supplied by CSS
  • Tubing Connectors. (Polypropylene).
  • Polypropylene compression fittings offer good chemical resistance and are unaffected by most weak acids and alkalies, at temperatures less than 80◦C they offer good resistance to organic solvents.
  • Pressure rating: up to 50psi for standard fittings, 150psi with  stainless gripper.
  • Other fittings available please contact us if not listed below.



KEY FEATURES

Working Temperature: -34◦C to +100◦C

Pressure Rating: standard fittings 50 psi, with stainless steel gripper 150psi

Applications: Range of fittings suit all types of tubing

Construction:  Standard fittings all Polyproylene

Advantages: Low cost and offer good resistance to corrosions and chemicals

Availability:  Ex Stock for majority including fittings not listed in our “core” selection below

Details

CSS REFDESCRIPTIONPRICE
70-04-04-P-O¼"od tube std gripper PP male tube tee£4.75
70-06-06-P-O3/8"od tube std gripper PP male tube tee£6.28
70-08-08-P-O½"od tube std gripper PP male tube tee£7.58

Documents

TitleDescriptionDownload
CSS JACO ConnectorsData specification SheetDownload
