JACO Tube Connectors

  • Tubing Connectors. (Polypropylene).
  • Polypropylene compression fittings offer good chemical resistance and are unaffected by most weak acids and alkalies, at temperatures less than 80◦C they offer good resistance to organic solvents.
  • Pressure rating: up to 50psi for standard fittings, 150psi with  stainless gripper.
  • Other fittings available please contact us if not listed below.





KEY FEATURES

Working Temperature: -34◦C to +100◦C

Pressure Rating: standard fittings 50 psi, with stainless steel gripper 150psi

Applications: Range of fittings suit all types of tubing

Construction:  Standard fittings all Polyproylene

Availability:    Good stocks held for next day delivery

Advantages: Low cost and offer good resistance to corrosions and chemical

Availability:  Ex Stock for majority including fittings not listed in our “core” selection below

Details

CSS REFDESCRIPTIONPRICE

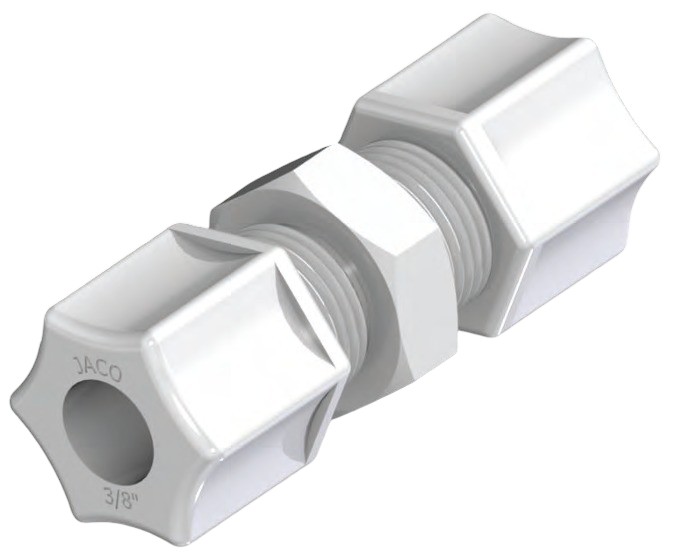

15-04-04-P-0Straight Tube Connector ¼" OD Tube x ¼" OD Tube - Standard Gripper£3.21
15-04-04-P-SGStraight Tube Connector ¼" OD Tube x ¼" OD Tube - Steel Gripper£3.92
15-06-06-P-0Straight Tube Connector ⅜" OD Tube x ⅜" OD Tube - Standard Gripper£4.74
15-06-06-P-SGStraight Tube Connector ⅜" OD Tube x ⅜" OD Tube - Steel Gripper£5.75
15-08-08-P-0Straight Tube Connector ½" OD Tube x ½" OD Tube - Standard Gripper£5.75
15-08-08-P-SGStraight Tube Connector ½" OD Tube x ½" OD Tube - Steel Gripper£6.99
15-12-12-P-SGStraight Tube Connector ¾" OD Tube x ¾" OD Tube - Steel Gripper£9.61

Documents

TitleDescriptionDownload
Jaco Selection & Fitting GuideDownload
