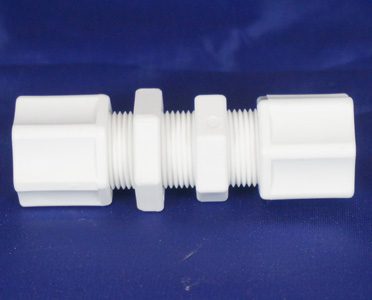

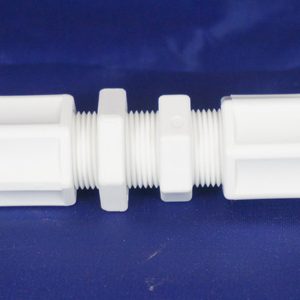

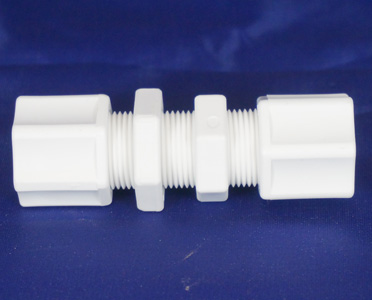

JACO PP BULKHEAD UNIONS

JACO connector PP BULKHEAD UNIONS supplied by CSS
  • JACO connector PP BULKHEAD UNIONS supplied by CSS

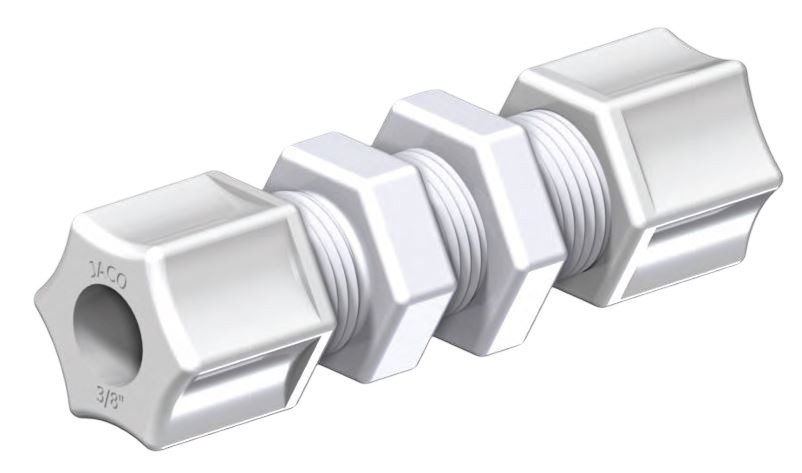

  • JACO Bulkhead Union
  • Tubing Connectors. (Polypropylene).
  • Polypropylene compression fittings offer good chemical resistance and are unaffected by most weak acids and alkalies, at temperatures less than 80◦C they offer good resistance to organic solvents.
  • Pressure rating: up to 50psi for standard fittings, 150psi with stainless gripper.
  • Other fittings available please contact us if not listed below



KEY FEATURES

Working Temperature: -34◦C to +100◦C

Pressure Rating: standard fittings 50 psi, with stainless steel gripper 150psi

Applications: Range of fittings suit all types of tubing

Construction:  Standard fittings all Polyproylene

Advantages: Low cost and offer good resistance to corrosions and chemicals

Availability:  Ex Stock for majority including fittings not listed in our “core” selection below



Details

CSS REFDESCRIPTIONPRICE
20-04-04-P-O¼" od Tube x ¼" o/d tube std gripper PP Bulkhead union£4.05
20-06-06-P-PG6mm od Tube x 6mm o/d tube plastic gripper PP Bulkhead union£6.43
20-06-06-P-O3/8" od Tube x 3/8" o/d tube std gripper PP Bulkhead union£4.99
20-08-08-P-O½" od Tube x ½" o/d tube std gripper PP Bulkhead union£6.98
20-12-12-P-SG¾" od Tube x ¾" o/d tube std gripper PP Bulkhead union£13.88

Documents

TitleDescriptionDownload
CSS-JACO-Data-specifications-SheetJACO specifications sheetDownload
