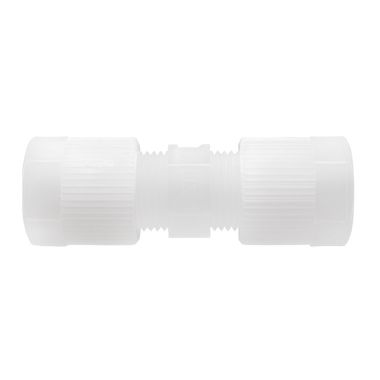

PVDF Tube Connector Fitting

  • Polyvinylidenefluoride Tubing connectors (PVDF).
  • PVDF connectors / fittings are suitable for use with corrosives and aliphatic, aromatic and chlorinated hydrocarbons, carboxylic acids, alcohol.
  • These PVDF fittings are designed for connecting tubes and hoses especially with aggressive media.
  • PVDF fittings supplied by CSS are not subject to regulation (EC) No 1907/2006 (REACH) and therefore do not need to be registered, evaluated or authorized.



KEY FEATURES:

Pressure Rating :10barg at 23 ◦C.

Working Temperature:  -40◦C to +100◦C

Applications: Excellent chemical resistance and non toxic so can be used for high purity applications.

Construction: PVDF

Advantages: Easy and fast to install.

Availability: Listed fittings ex stock, all others approximately 7 -10 days lead time



Details

CSS REFDESCRIPTIONPRICEEnquire
6mm Conn6mm Tube connector£6.00Enquire
8mm Conn8mm Tube connector£9.60Enquire
12/9mm Conn12/9mm tube connector£18.88Enquire

Other fittings and sizes available

Documents

TitleDescriptionDownload
PVDF connectors data sheetDownload
6mm Conn pvdf data sheet & drawingDownload
8mm conn pvdf data sheet & drawingDownload
12-9mm conn pvdf data sheet & drawingDownload
