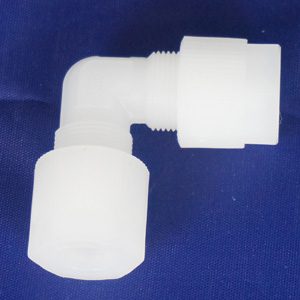

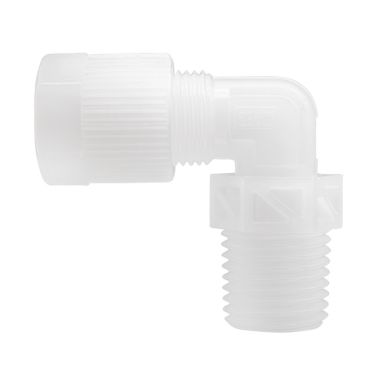

PVDF Male Adaptor Elbow Union Connector Fitting

  • PVDF connectors / fittings are suitable for use with corrosives and aliphatic, aromatic and chlorinated hydrocarbons, carboxylic acids, alcohol.
  • These PVDF connector fittings are designed for connecting tubes and hoses especially with aggressive media.
  • PVDF fittings supplied by CSS are not subject to regulation (EC) No 1907/2006 (REACH) and therefore do not need to be registered, evaluated or authorized.

KEY FEATURES:

Pressure Rating: 10barg at 23 ◦C.

Working Temperature:  -40◦C to +100◦C

Applications: Excellent chemical resistance and non toxic so can be used for high purity applications.

Construction: PVDF

Advantages: Easy and fast to install.

Availability: Listed fittings ex stock, all others approximately 7 -10 days lead time



Details

CSS REFDESCRIPTIONPRICEEnquire
ELBOW-6- 1/4¼"bsp Male - 6mm elbow£7.25Enquire
ELBOW-8 - 1/4¼" bsp Male 8mm elbow£8.30Enquire
ELBOW -10 - 3/83/8" bsp Male 10mm elbow£11.00Enquire
ELBOW-12/9-1/2½" bsp Male 12/9mm elbow£14.26Enquire
ELBOW-12/9-3/83/8" bsp Male-12/9mm elbow£13.10Enquire

Other sizes and fittings available on request

Documents

TitleDescriptionDownload
ELBOW 6 data sheet & drawingDownload
eLBOW 8 data sheet & drawingDownload
ELBOW 12-9-1-2 data sheet & drawingDownload
eLBOW 12-9-3-8 data sheet & drawingDownload
PVDF data sheetDownload
