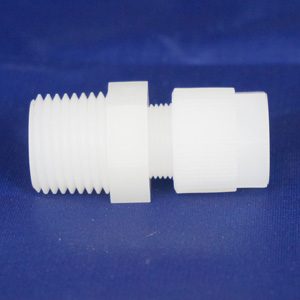

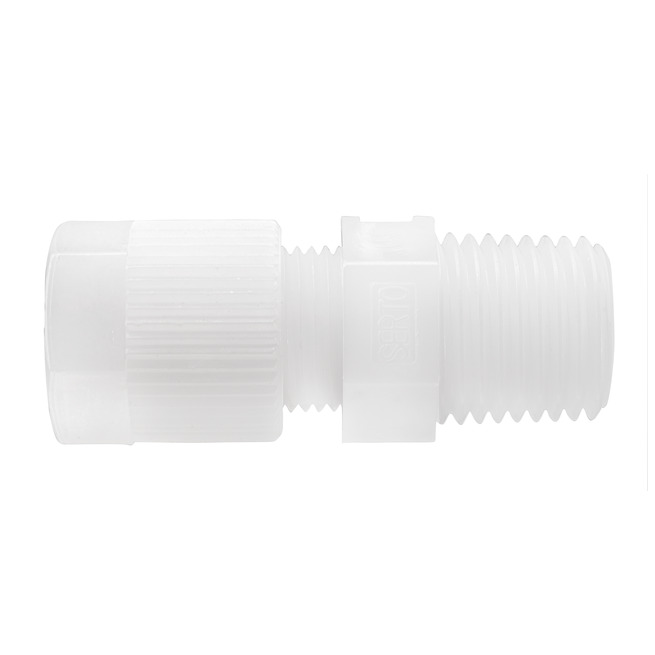

PVDF Male Tube Connector Fitting

  • PVDF connectors / fittings are suitable for use with corrosives and aliphatic, aromatic and chlorinated hydrocarbons, carboxylic acids, alcohol.
  • These PVDF connector  fittings are designed for connecting tubes and hoses especially with aggressive media
  • PVDF fittings supplied by CSS are not subject to regulation (EC) No 1907/2006 (REACH) and therefore do not need to be registered, evaluated or authorized.

KEY FEATURES:

Pressure Rating: 10barg at 23 ◦C.

Working Temperature:  -40◦C to +100◦C

Applications: Excellent chemical resistance and non toxic so can be used for high purity applications.

Construction: PVDF

Advantages: Easy and fast to install.

Availability: Listed fittings ex stock, all others approximately 7 -10 days lead time

Details

CSS REFDESCRIPTIONPRICEEnquire
1/4-Male-61/4" bsp male - 6mm od tube£6.10Enquire
3/8 -Male-63/8" bsp Male - 6mm od Tube£6.60Enquire
3/8- Male-83/8" bsp Male - 8mm od Tube£7.30Enquire
3/8- Male 12/93/8" bsp Male - 12mm od x 9mm id Tube£13.60Enquire
1/2- Male-61/2" bsp Male - 6mm od tube£9.36Enquire
1/2- Male-81/2" bsp Male - 8mm od tube£10.22Enquire
1/2-Male -121/2" bsp male - 12mm od tube 10mm inner£13.62Enquire
1/2- Male-12/91/2" bsp Male - 12mm od x 9mm id Tube£13.62Enquire

Documents

TitleDescriptionDownload
PVDF data sheetDownload
half inch male - 6Download
half inch male -8Download
half inch male 12-9Download
Serto fitting instructionsDownload
three eights Male-6Download
three eights male -8Download
three eights male 12-9Download
