Grundfos DDE Smart Digital Dosing Pumps

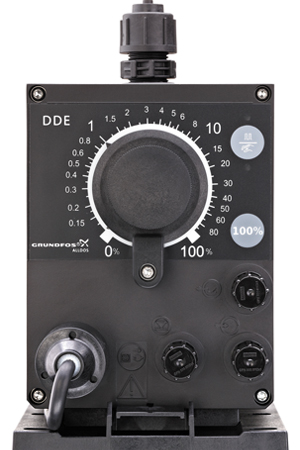

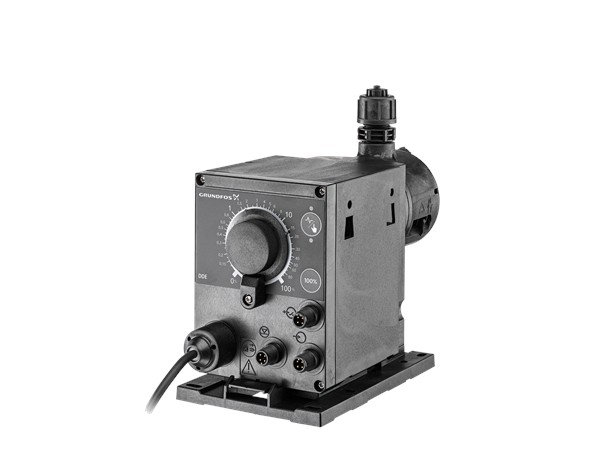

DDE Smart Digital dosing pump
  • Stepper Drive Technology offering 1000:1 Turndown ratio
  • Near continuous dosing with full suction stroke.
  • Easy to operate with capacity adjustment knob 0.1 – 100%
  • External control via remote start/stop and pulsed input.**
  • Dual voltage 100-240V 50/60Hz

Pump model        C.O.O          Customs Tariff      Gross Weight    Nett Weight

97720949            UK.                84135940                   3kg                    2kg

97721017              France         84135040                   3kg                    2kg

99159336             France         84135040                   7kg                    6kg

Details

CSS REFDescriptionCapacityConnection sizePRICE
97720949DDE 6-10 P Wetted parts PP/EPDM/Ceramic*6 ml/hr - 6 l/hr @ 10 bar4/6, 6/9, 6/12, 9/12mm £564.00
97721017DDE 15-4 P Wetted parts PP/EPDM/Ceramic*15 ml/hr - 15 l/hr @ 4 bar4/6, 6/9, 6/12, 9/12mm£742.00
99159336DDE60-10 P Wetted parts PVC/Ceramic/FKM75 ml/hr - 60 l/hr @ 10 bar19/27, 20/25mm£2,385.00

Documents

TitleDescriptionDownload
DDE manualDownload
99159336_DDE_6010Download
97721017_DDE_154Download
97720949_DDE_610Download
