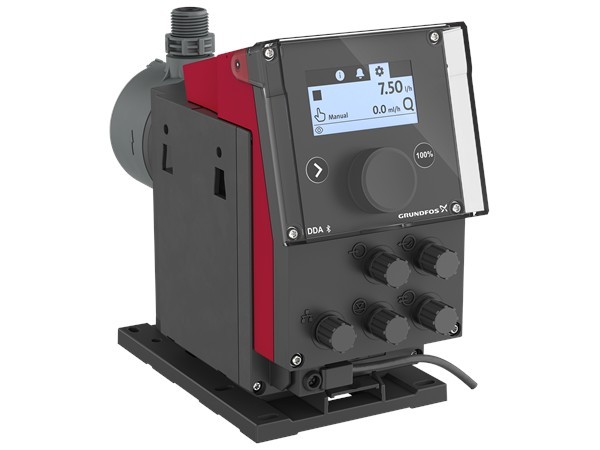

GRUNDFOS DDC/DDA AR SMART DIGITAL DOSING PUMPS

DDE as DDE with additional features below:

  • Easy commissioning with 25 languages and plain text menu.
  • Easy to operate with large LCD display and click wheel.
  • Easy to install with removable click plate and three position removable control cube.
  • External control via remote start/stop, pulsed input and 0/4-20mA **

DDA as DDC with additional features below:

  • Batch and timer (real time clock), 4-20mA feedback. ***
  • Two programmable fault relays ***
  • Built in Flow measurement & pressure monitoring on request.

Commodity Code for DDC/DDA Pumps:  84125040

Country of Origin : France **

** DDA60: County of Origin – Denmark

Details

CSS REFDescriptionCapacityConnection sizePRICEEnquire
97721358DDC 6-10 AR Wetted parts PP/EPDM/Ceramic*6ml-6 1/hr @ 16 bar4/6,6/9,6/12,9/12mm£825.00Enquire
97721427DDC 9-7 AR Wetted parts PP/EPDM/Ceramic*9ml-9 l/hr @ 7 bar4/6,6/9,6/12,9/12mm£825.00Enquire
97721495DDC 15-4 AR Wetted parts PP/EPDM/Ceramic*15ml-15 l/hr @ 4 bar4/6,6/9,6/12,9/12mm£966.00Enquire
97722142DDA 17-7 AR Wetted parts PP/EPDM/Ceramic*17ml-17 l/hr @ 7 bar4/6,6/9,6/12,9/12mm£1,236.00Enquire
97722244DDA 30-4 AR Wetted parts PP/EPDM/Ceramic*30ml-30 l/hr @ 4 bar4/6,6/9,6/12,9/12mm£1,359.00Enquire
99159371DDA 60-10 AR Wetted parts PVC/FKM/Ceramic75ml-60 l/hr @ 10 bar3/4" bsp£1,764.00Enquire
99159385DDA120-7 AR Wetted parts. PVC/FKM/Ceramic150ml-120 l/hr @ 7 bar3/4" bsp£1,911.00Enquire
99159399DDA 200-4 AR Wetted parts PVC/FKM/Ceramic250ml - 200 l/hr @ 4 bar3/4" bsp£2,025.00Enquire

Documents

TitleDescriptionDownload
DDC - Installation and Operation ManualDownload
DDA english pump - Installation and Operation ManualDownload
97721358_DDC_6-10Download
97721427_DDC_9-7Download
97721495_DDC_15-4Download
97722142_DDA_17-7Download
97722244_DDA_30-4Download
99159371_DDA_6010Download
99159385_DDA_120Download
99159399_DDA_200 4Download
