SCHUTZ IBC Adaptors

SCHUTZ IBC ADAPTOR Female to BSP supplied by CSS

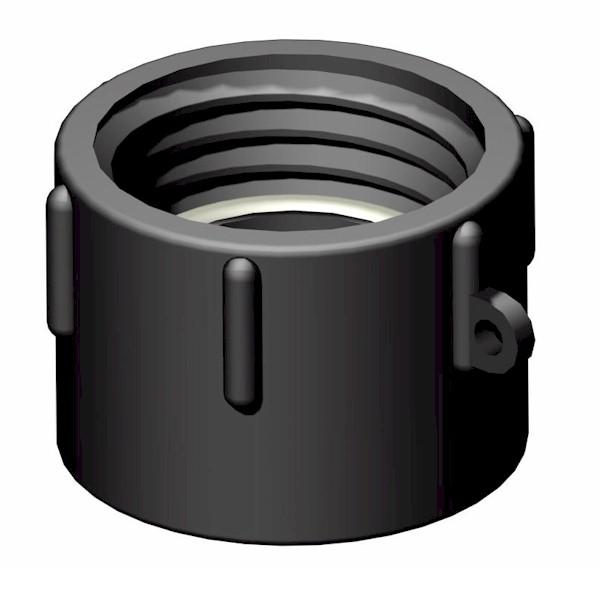

  • SCHUTZ IBC ADAPTOR Female to BSP supplied by CSS

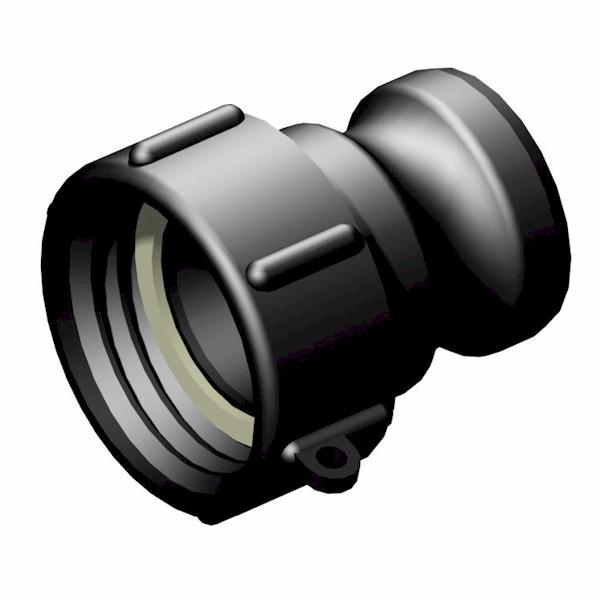

  • SCHUTZ IBC ADAPTOR Female to Male Camlock supplied by CSS
  • IBC adapters are manufactured from Glass re-inforced Polypropylene with Santoprene  seals, they are used to adapt the male thread of the IBC outlet valve to either a female BSP thread or a male camlock.







Key Features:

Pressure Rating: 100psi (6.8barg) @ +20◦C

Temperature Rating: 100C to + 800C.

Construction: GRPP (Polypropylene), Santoprene seal as standard

Options: Other seals available on request

Availability: Ex Stock

Details

CSS REFDESCRIPTIONPrice
S60 PA25B60mm Schutz Female thread x 1" Male Camlock£10.30
S60 PA40B60mm Schutz Female thread x 1 1/2" Male Camlock£10.30
S60 PA50B60mm Schutz Female thread x 2" Male Camlock£10.68
S60 FB40B60mm Schutz Female thread x 1 1/2" Female BSP£14.06
S60 FB50B60mm Schutz Female thread x 2"Female BSP£14.06

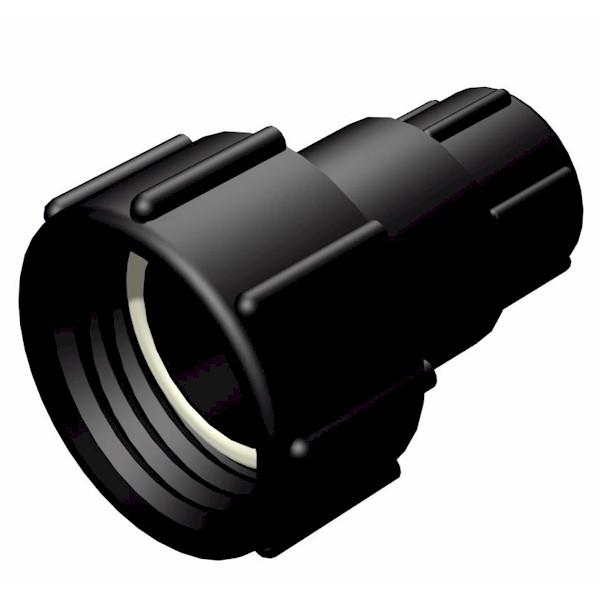

S60-3/4"-FWS60mm Schutz Female thread x 3/4" Female BSP Swivel Buttress £15.56
S60-1"-FWS60mm Schutz Female thread x 1" Female BSP Swivel Buttress£15.56
S60-1 1/2"-FWS60mm Schutz Female thread x 1 1/2" Female BSP Swivel Buttress£15.56
S60-2"-FWS60mm Schutz Female thread x 2" Female BSP Swivel Buttress£15.56
