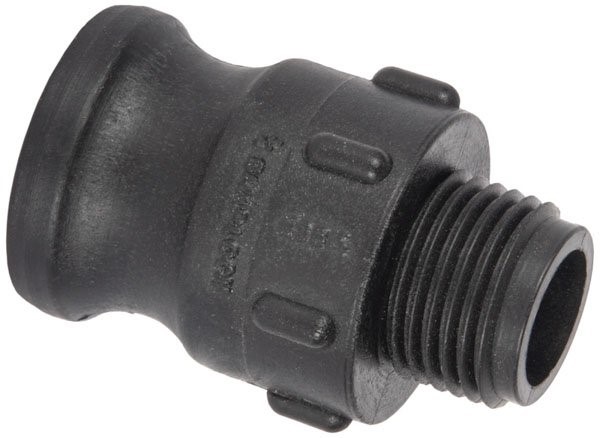

PART F Camlock MALE BSP THREADED ADAPTOR Compression Fitting

  • Part F camlocks are most commonly used with Part B couplers, but can also be used with Part C and D camlock couplers or Part DC (Dust Cap) of the same size.
  • The Camlock system is widely used in industry and chemical applications. It enables quick, efficient and safe connection with hoses or piping, it is based on two elements the adaptor and the coupler, both manufactured with GRP/PP body, EPDM seals (as standard) and stainless steel arms.
  • The Camlock system operates by opening the coupler’s arms and putting in the adaptor into the coupler, and closing the couplers arms to form a seal between the two elements.





Key Features:

Pressure Rating: 100psi (6.8barg) @ +20◦C

Temperature Rating: 100C to + 800C.

Construction: GRPP (Polypropylene)

Options: Other sizes and seals available on request

Availability: Ex Stock

Details

CSS REFDESCRIPTIONPRICEEnquire
3/4 M/F3/4" Male Camlock x 3/4" Male BSP£3.15Enquire
1 M/F1" Male Camlock x 1" Male BSP£3.20Enquire
1 1/4 M/F1 1/4" Male Camlock x 1 1/2" Male BSP£4.10Enquire
1 1/2 M/F1 1/2" Male Camlock x 1 1/2" Male BSP£4.20Enquire
2 M/F2" Male Camlock x 2" Male BSP£4.78Enquire
