IBC Mother Daughter System

IMPROVED DESIGN AFTER EASTER 2019

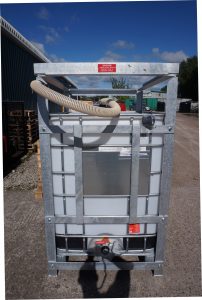

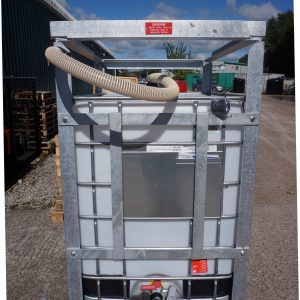

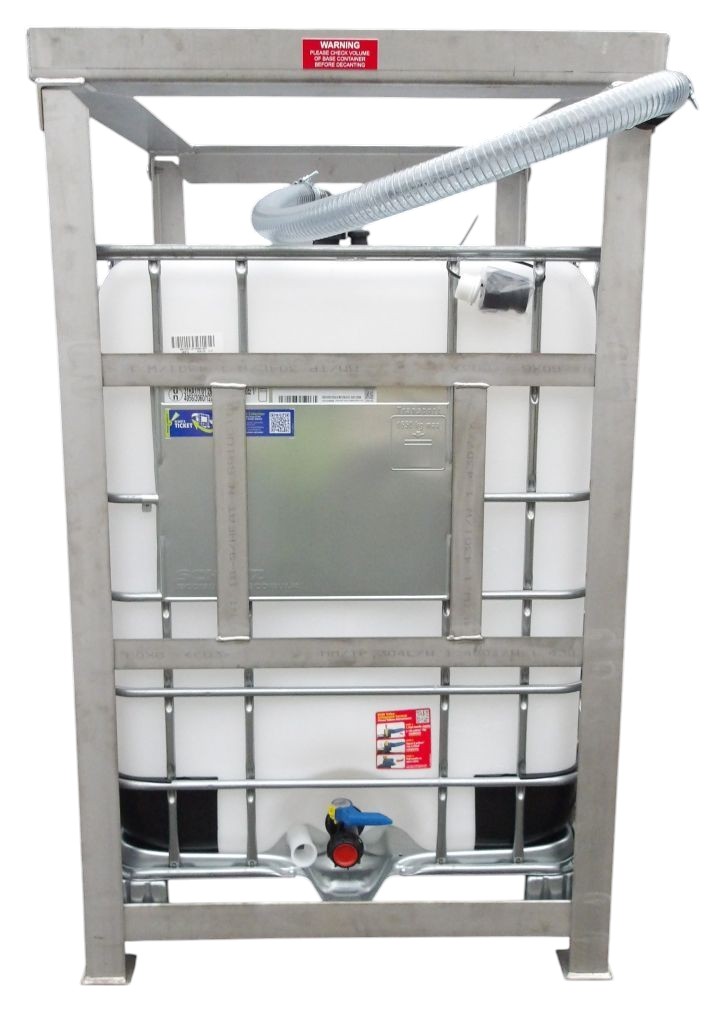

Mother-Daughter frame with MX1250 Schutz IBC container complete with 1.5meter long – 2” bore PVC flexible decanting line with camlock female connection, locator on tank frame, hose feeding to 90◦ removable connection in tank lid.  1” PVC vent also fitted to IBC lid.

Material of frame construction is galvanized mild steel (60mm x 8mm plate and 80mm x 80mm x 8mm angle.  New top plate design in 150mm x 90mm x 10mm angle.  Hardware is zinc plated, 8.8 grade mild steel.

Unit dimensions: 1040mm (width) x 1240mm (depth) x 1820mm (height).

Unit weight: 300kg

Out let connection via 1” BSP HDPE, IBC outlet fitting (using existing nut and seal)

Price: £1260.00 ex works

Key Features

Frame Construction: Galvanised mild steel

Standard: Comes complete with MX1250 IBC and 2” decanting hose

Availability: Ex Stock

Details

new mother daughter Frame

Documents

TitleDescriptionDownload
IBC Mother daughter system projectionDownload
