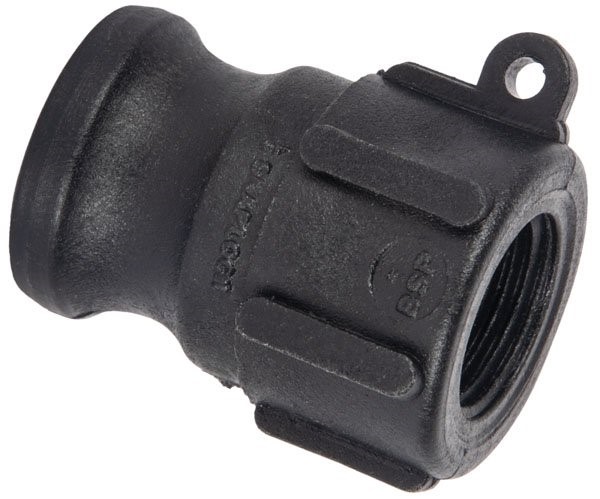

Part A Camlock compression fitting (GRP/PP).

  • The Camlock system is widely used in industry and chemical applications. It enables quick, efficient and safe connection with hoses or piping, it is based on two elements the adaptor and the coupler, both manufactured with GRP/PP body, EPDM seals (as standard) and stainless steel arms.
  • The Camlock system operates by opening the coupler’s arms and putting in the adaptor into the coupler, and closing the couplers arms to form a seal between the two elements.
  • Part A camlocks are most commonly used with Part D camlocks, but can also be used with  part C and B type couplers or Dustcaps (DC) of the same size.

Pressure Rating:   100psi (6.8barg) @ +20◦C

Temperature Rating: 100C to + 800C.

Construction: GRPP (Polypropylene), epdm seals as standard

Options:  Other sizes and seals available on request

Availability: Ex Stock


1/2 F/A1/2" BSP Female x 3/4" Male Camlock£2.50
3/4 F/A3/4" Female BSP x 3/4" Male Camlock£2.50
1 F/A1" Female BSP x 1" Male Camlock£3.00
1 1/2 F/A1 1/2" Female BSP x 1 1/2" Male Camlock£4.53
2 F/A2" Female x 2" Male Camlock£5.55
