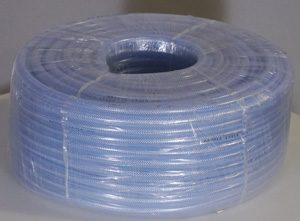

Re-Inforced PVC Braided Hose

  • Clear Braided Re-inforced PVC hose- Heavy Duty Industrial Grade

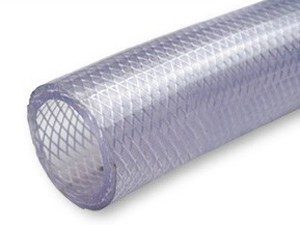

  • Braided hose is manufactured from a reinforcing braid of polyester fibre laminated between two layers of clear pvc, producing a strong hose, capable of withstanding high pressures, the hoses are manufactured to BS6066 1981 Tolerances.
  • Braided hose is ideal for factory airlines, pneumatic equipment, pressurised liquids and gases.
  • Supplied in 30metre, 50m & 100m lengths.

Key Features

  • Temperature Range : -20◦C to +65◦C
  • Pressure rating: upto 13 barg. (subject to size and temperature)
  • Application: Delivery of cooling liquids, chemical solutions in the food and canning industry, compressed air.
  • Advantages: Lightweight and very flexible. Resistant to weather conditions.
  • Availability: Ex Stock

Details

CSS REFDESCRIPTION30m Coil50m Coil100m Coil
B.P.V.C HOSE 3/8"3/8"nominal bore hose (10mm x 14mm)£27.70£78.64£92.20
B.P.V.C HOSE 1/2"1/2" nominal bore hose (12.5mm x 18.2mm)£32.29£83.84£102.67
B.P.V.C HOSE 3/4"3/4" nominal bore hose (19mm x 25.6mm)£56.13£110.69£156.38
B.P.V.C HOSE 1"1" nominal bore hose (25mm x 32.6mm)£81.17£199.73£334.46
B.P.V.C HOSE 1 1/4 "1 1/4 " nominal bore hose (32mm x 41.6mm)£118.69--
B.P.V.C HOSE 1 1/2"1 1/2" nominal bore hose, (38mm x 48mm) £158.99--
B.P.V.C HOSE 2 "2" nominal bore hose (50mm x 61mm)£206.86--

Documents

TitleDescriptionDownload
PVC BRAID REINFORCED TYPE HDPVC TECHNICAL DATADownload
chemical Compatibility chart bradied hoseDownload
