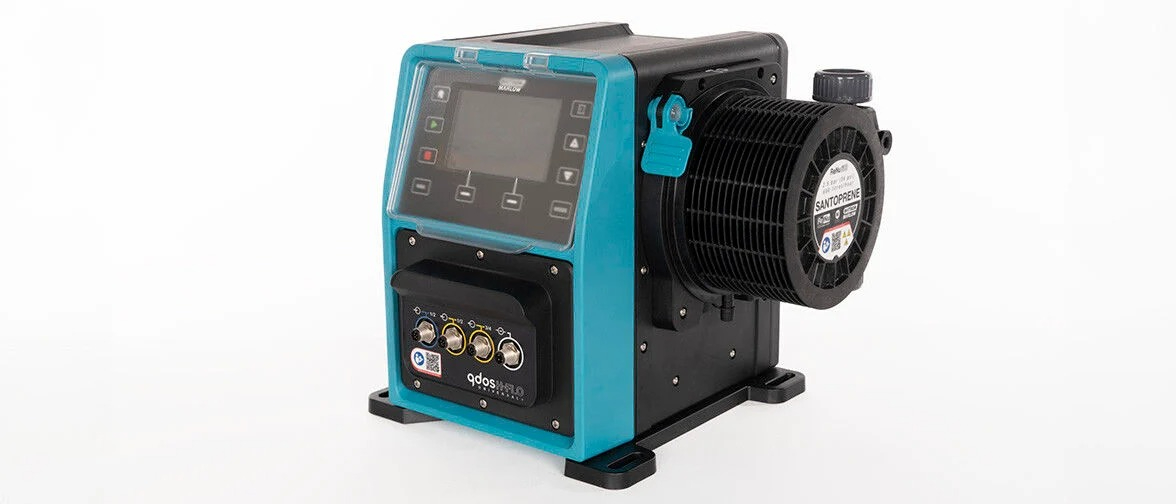

Watson Marlow Qdos H-FLO Pumps

Qdos H-FLO is the latest pump in the Qdos® range, designed specifically for higher flow rates of up to 600 L/hr.

Delivering the same accuracy and reliability as other Qdos metering and dosing pumps, Qdos H-FLO pumps offer long maintenance intervals to reduce the impact of process downtime and lower the overall cost of ownership.

Features and benefits

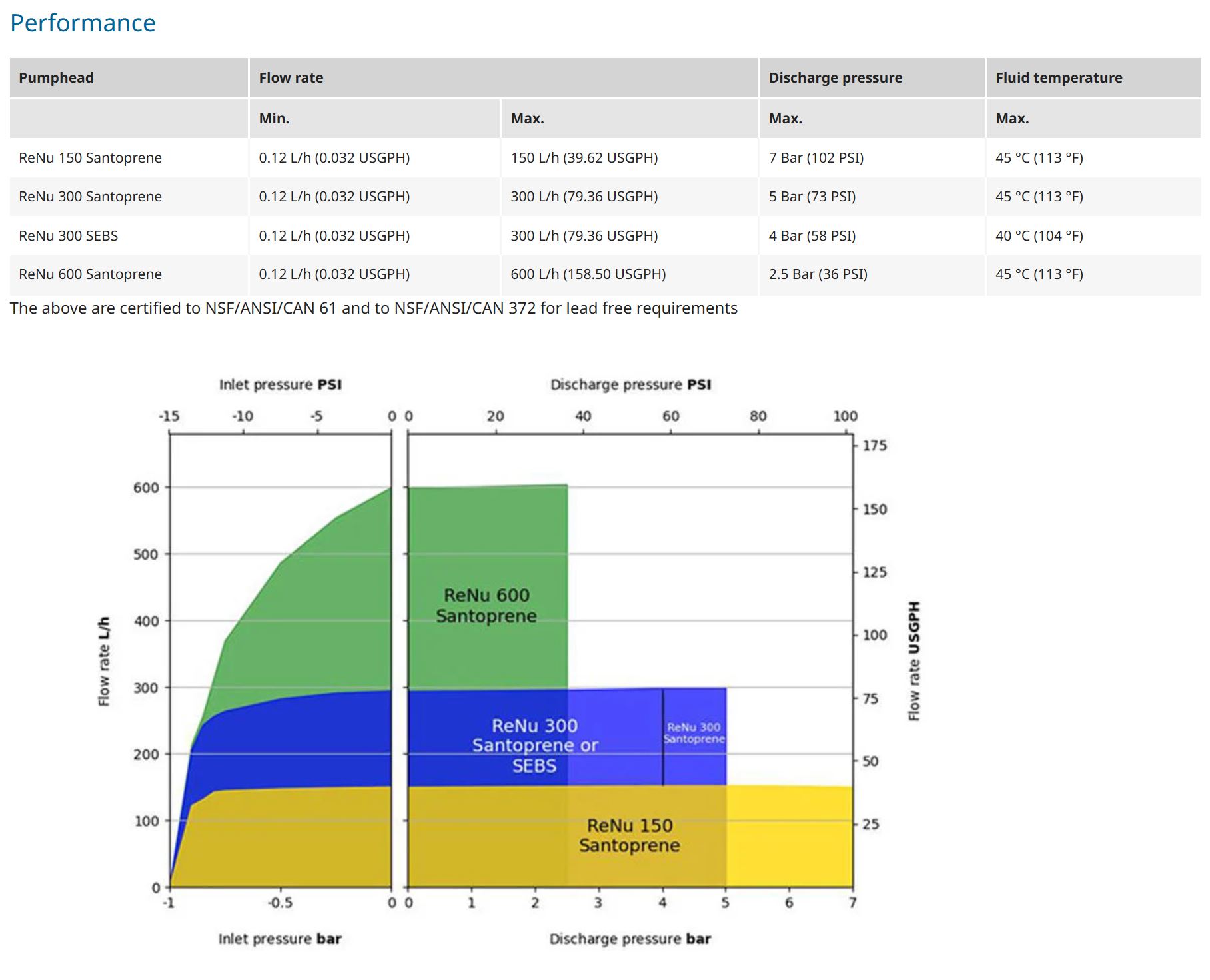

  • Qdos H-FLO offers flow rates up to 600 L/h and pressure capability up to 7 bar
  • RFID Pumphead detection ensures confirmation of correct pumphead
  • Revolution counter for pumphead service maintenance
  • One common pump drive with several pumphead options for changing process conditions and chemistries
  • Network integration, control and communication options include EtherNet/IP, PROFIBUS and PROFINET
  • Optional pressure sensing kit with configurable alarms for process monitoring

Details

CSS RefDescriptionPrice
0M6.604M.GLUPump Drive Only - Universal (M12 Connectors)£3,981.25
0M6.604M.GRUPump Drive Only - Universal (M12 Connectors)£3,981.25
0M6.604T.GLUPump Drive Only - Universal (User-wired)£4,020.63
0M6.604T.GRUPump Drive Only - Universal (User-wired)£4,020.63
0M6.605M.GLUPump Drive Only - Universal+ (M12 Connectors)£4,471.25
0M6.605M.GRUPump Drive Only - Universal+ (M12 Connectors)£4,471.25
0M6.605T.GLUPump Drive Only - Universal+ (User-wired)£4,528.13
0M6.605T.GRUPump Drive Only - Universal+ (User-wired)£4,528.13

Documents

TitleDescriptionDownload
Qdos Range Brochure (EN)Download
