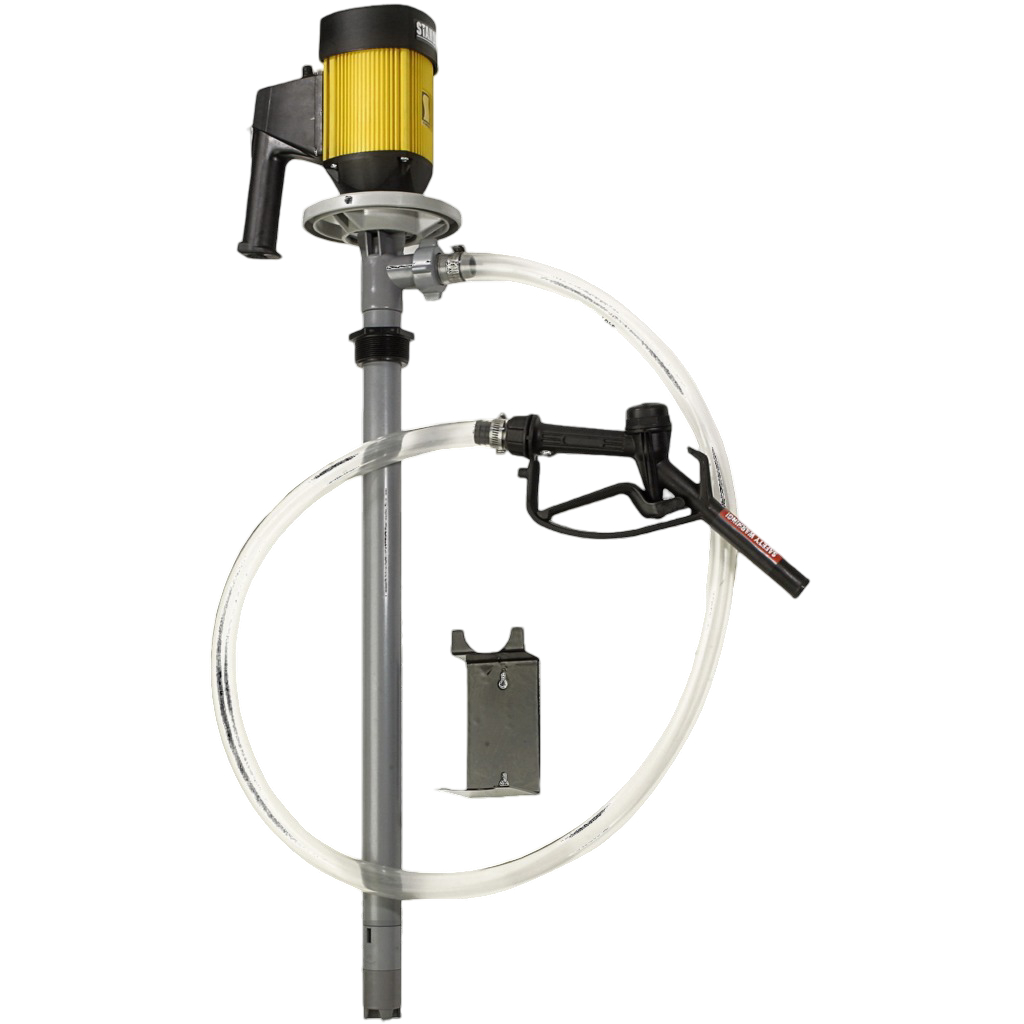

SERFILCO SERIES ‘DP’ DRUM PUMP

Drum Pumps provide a very efficient means of transferring and dispensing most liquid chemicals from drums, carboys and tanks. They are available in Polypropylene, PVDF, CPVC and Stainless Steel, the flow may be controlled with the unique speed control knob.

  • High Head drum pumps available upon request

When ordering, please select motor and add the pump tube.

Key Features

  • Length’s 27’’, 39’’, 47’’, 60’’ and 72’’.
  • Seal-less, one piece outer tube with screw-on “foot”.
  • Robust Construction.
  • Heavy Duty Motor, 825w capable of handling liquids up to 1.8 SG.
  • Availability: Generally Ex stock
  • Motors available in 115v & 230v, Electric, Explosion Proof and Air Operated Motors are all available

Details

CSS REFLENGTH mmDIAMETEROUTLET DIAMETERMATERIALPRICE
52-10087001" (41mm)1" HosePolypropylene£417.15
52-100010001" (41mm)1"HosePolypropylene£456.30
52-100112001" (41mm)1" HosePolypropylene£465.75
52-40047001" (41mm)1" HosePVDF£642.60
52-400010001" (41mm)1" HosePVDF£805.95
52-400112001" (41mm)1" HosePVDF£838.35
52-2050-3910001" (41mm)1" HoseStainless Steel£592.92
52-2050-4712001" (41mm)1" HoseStainless Steel£850.50
52-52007001" (41mm)1" HoseCPVC£425.25
52-520110001" (41mm)1" HoseCPVC£456.30
52-520212001" (41mm)1" HoseCPVC£492.75

Documents

TitleDescriptionDownload
Pump Safety ManualDownload
Drum pumps info sheetDownload
Drum Pump Chemical Resistance GuideDownload
