316 STAINLESS STEEL INJECTION FITTINGS

Injection lances (or fittings) are generally used within dosing systems as a means of introducing chemical into main pipeline streams. Sample lances are used to extract samples for quality monitoring. Lances with a non-return valve fitted prevent backflow.

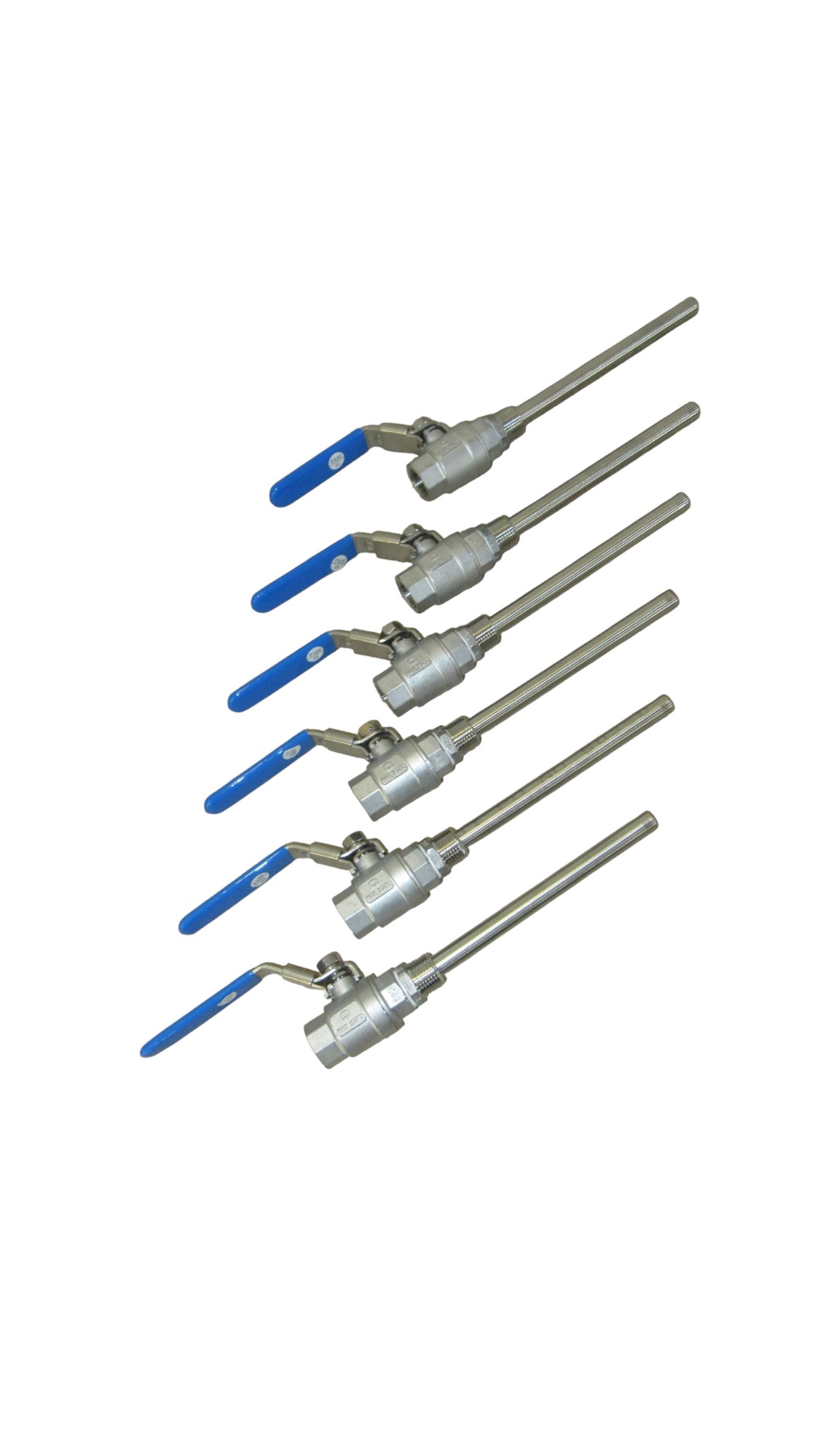

Quills can be made to longer lengths if required

In order to  select and quote for a suitable injection fitting we require

  • Dosage rate, pressure, and composition
  • Main line size, pressure and preferred tapping size and type (or existing tapping details)
  • Type of injection fitting required, insertion distance, if NRV required, and preferred dosage connection.





Key Features:

Material of construction: PVC or 316 stainless steel

Application:  Water Treatment systems

Availability: Basic versions ex.stock to 5 days

Details

CSS REFDESCRIPTIONPRICE

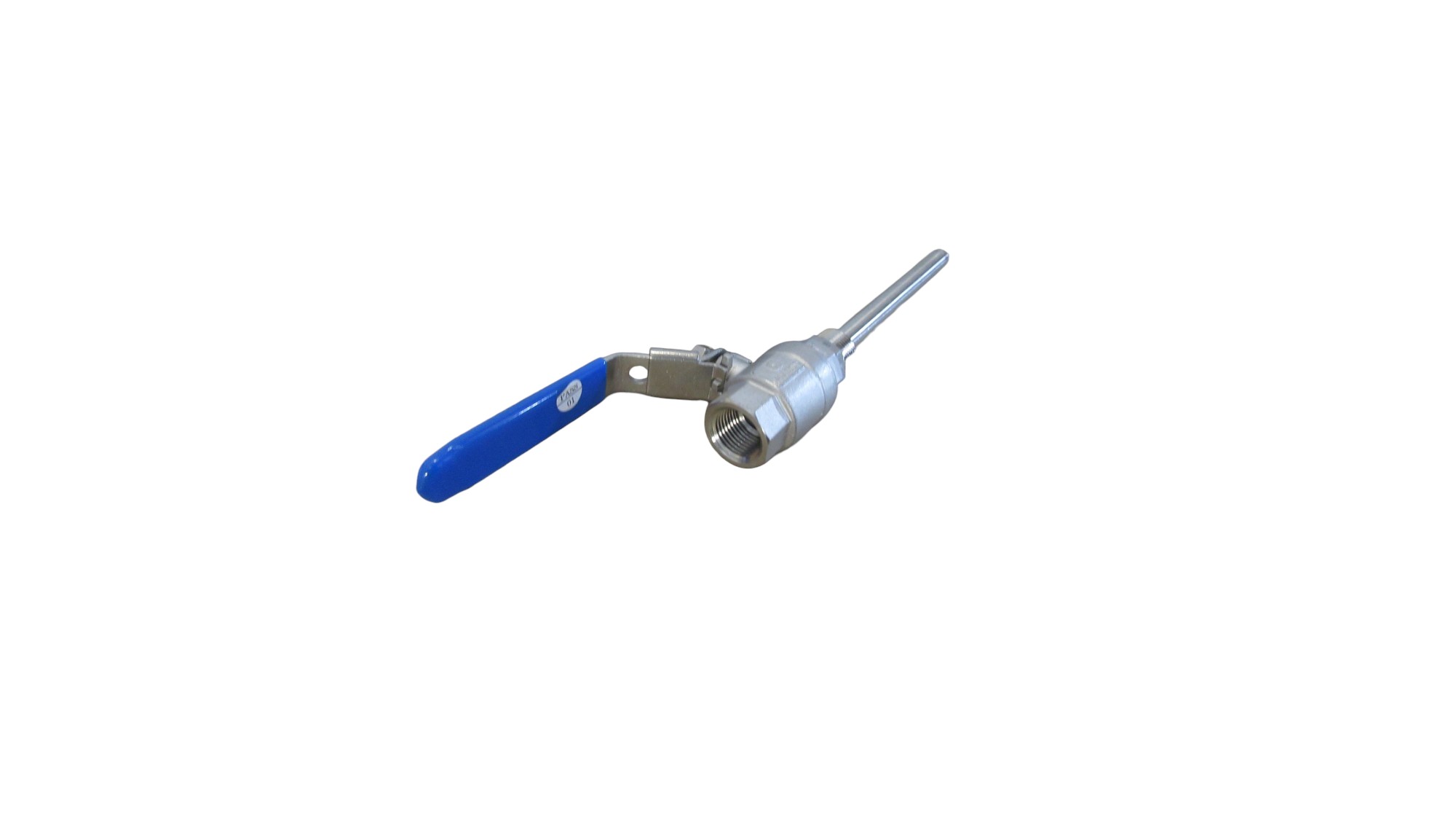

SSQ-150150mm Injection Quill ½" BSP male Connection£85.00

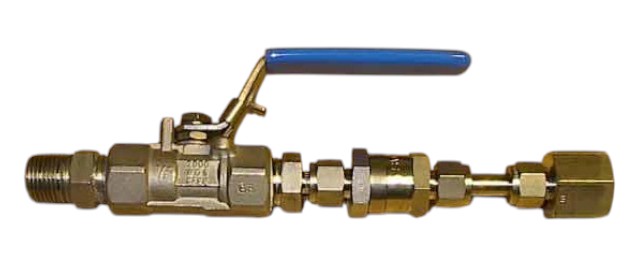

SSQ-150NInjection Quill With ½" male process Connection, 1/2" bsp female injection connection & N.R.V£247.00
SSQ-RET¾" NPT Process Connection, 0.54 Retractable Quill, Maximum Length 8.75, With ½" NPT Chemical Connectionp.o.a

Documents

TitleDescriptionDownload
Injection lance short SSQ-150 -Download
SSQ150 N - stainless steel injection quillDownload
