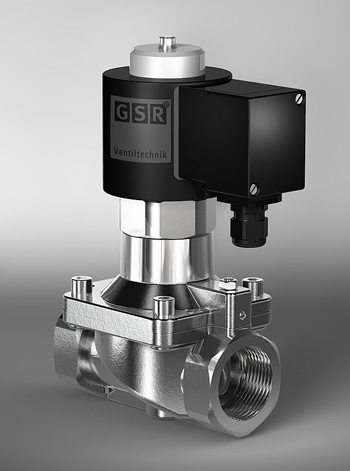

Force Pilot operated solenoid valves operate from 0 bar and can be installed where direct acting valves are used. The actuator of a force pilot operated valve opens a pilot orifice and then lift the sealing element from its seat directly or supported by the delta p of the operating pressure.
Spec temp rating pressure rating.
Please specify voltage when ordering
Key features:
Valve Body : Brass (Stainless steel option also available).
Disphragm seal: NBR (EPDM, FKM, PTFE options also available)
Design: Normally closed 2/2 way valve with diaphragm seal. (NO option also available)
Pressure range: 0-16bar.
Medium Temperature: -10 to + 800C. (3000C option also available).
Voltages available: 24vdc, 110v ac, 230v ac.
