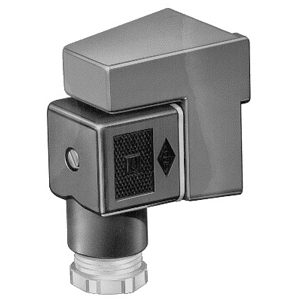

Rotameter Flowmeter switch

  • Limit switches with built in bistable reed contact.
  • Function independent of operating pressure, conductivity, concentration or density of the medium
  • Simple mounting by clamping to flowmeter
  • Can also be used with opaque medium
  • Switch only works with magnetic type floats.  Spare floats are available to order if required and ban be swopped over in situ.

Note:  >resistors = lower hysteresis

Detail Spec, tube materials, float material

Commodity Code: 9026900

Note: The switches fit both the standard & short length rotameters.

Details

CSS ref.DescriptionPrice
MAX 1251Maximum Switch to Suit Rotameters:-
Type 811,815, 817 DN20-65
Type 861,865,867 DN25 only
£74.03
MIN 1252Minimum Switch to Suit Rotameters:-
Type 811,815, 817 DN20-65
Type 861,865,867 DN25 only
£74.03
MAX 1256Maximum Switch to Suit Rotameters:-
Type 861, 865, 867 DN10-20
£74.03
MIN 1257Minimum Switch to Suit Rotameters:-
Type 861, 865, 867 DN10-20
£74.03

Documents

TitleDescriptionDownload
Flowmeter Switch data sheetDownload
