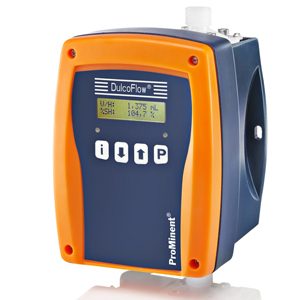

PROMINENT DULCOFLOW METERING PUMP

Measures pulsating volume flows from the metering pump reliably and precisely starting from a stroke volume of just 50ul.  The results are reported directly to the central control room, allowing the metering volume to be adjusted without delay.

Parts that come into contact with aggressive media are made of chemically- resistant

PVDF/PTFE.  Measure flow rates from 0.1 to 50 litres per hour.

Advantages

  • Direct Display of current flow and cumulative flow in litres or gallons
  • Switchable to display current stroke volume
  • Safety through display of operating and measurement status using LEDs
  • Easy operation with membrane keys

Key Features

Compact universal housing

Media contacting parts made of PVDF/PTFE

Two line display

Frequency output/stroke feedback

Ananlogue output 0/4—20mA, configurable as recorder output or as control output

Applications: Monitoring and recording of chemical dosing in most industries.

Availability: 2/3 weeks



Details

CSS REFDescriptionCapacityConnectionCSS PRICEEnquire
size
12840 DulcoFlow, with 4-20mA out, PVDF, 110/230V0-30 l/hr6 x 4mm£1,104.00Enquire
12841 DulcoFlow, with Contact out, PVDF, 110/230V0-30 l/hr6 x 4mm£1,104.00Enquire
14681 DulcoFlow, with 4-20mA out, PVDF, 110/230V30–80 l/hr8 x 5mm£1,104.00Enquire
14680 DulcoFlow, with Contact out, PVDF, 110/230V30-80 l/hr8 x 5mm£1,104.00Enquire

Documents

TitleDescriptionDownload
Data Sheet for download DulcoFlowDownload
