SERFILCO Air Pumps

1/4″, 1/2″, 1, 1 1/2″ and 2″

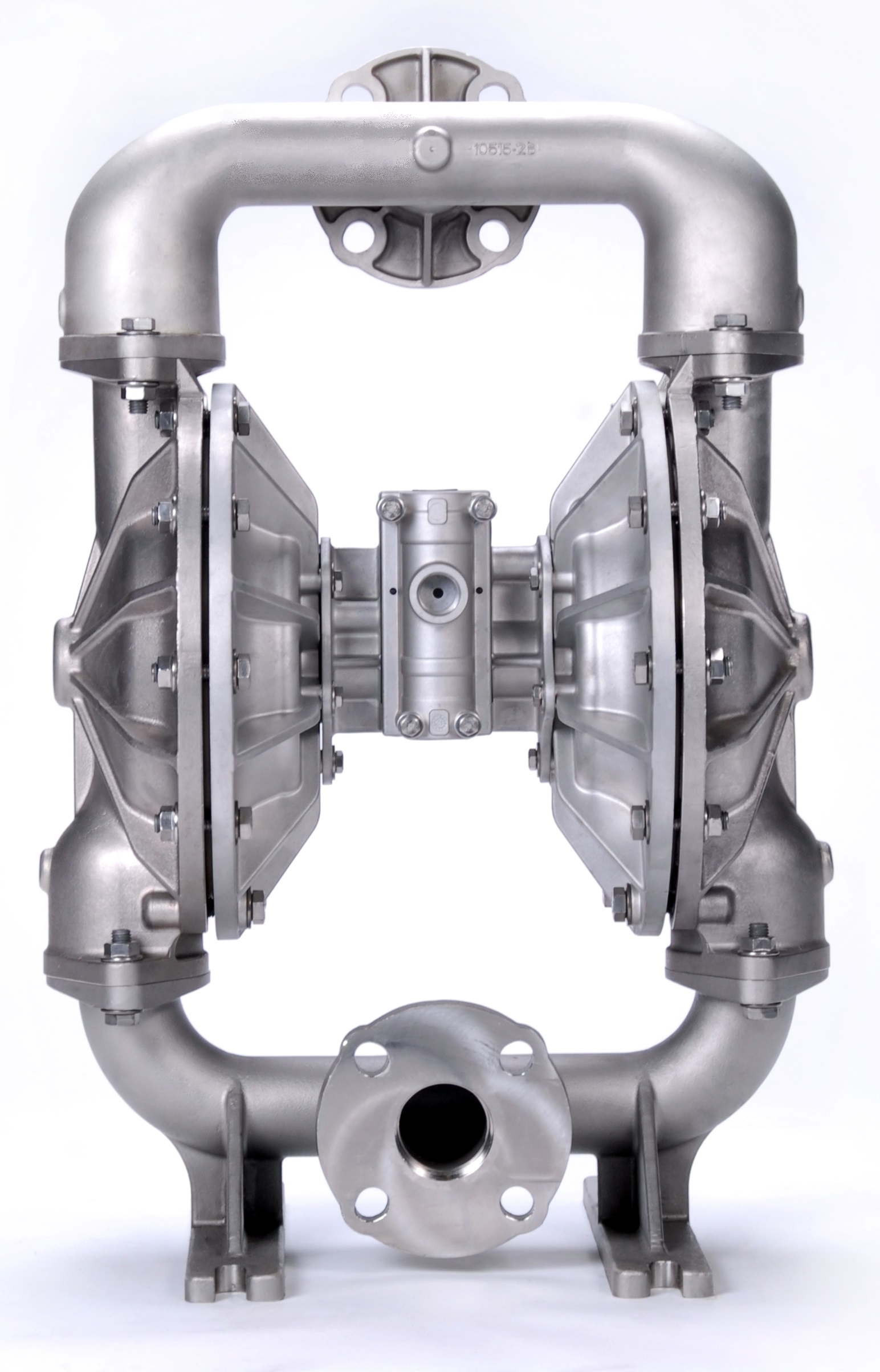

Rugged and durable self-priming, double diaphragm pumps. Non-stalling, lubrication free pumps provide heavy duty, long life and trouble free operation.

The Air Operated Diaphragm pumps are suitable for handling most corrosive chemical duties, using a proven air valve assembly these pumps are the most reliable. Performance engineered and quality product to withstand the toughest conditions.

High Efficiency Air Valve Assembly, Low Air Consumption.

Key Features:

Self Priming : runs dry

Flow Rates: up to 15ltr/min

Installation:  Easy to install. Please note EPDM Elastomers available if required.

Applications: Suitable for most corrosive chemicals.

Construction:  Available in PP, Stainless Steel , PVDF and Aluminium

Availability:  Generally Ex stock

Details

CSS REFPORT SIZEWETTED MATERIALSPRICEEnquire
55-7245¼"PP/TEFLON£315.50Enquire
55-7247¼"PVDF/TEFLON£415.00Enquire
55-7287½"PP/NITRILE£440.50Enquire
55-7288½"PP/TEFLON£555.00Enquire
55-7293½"PVDF/TEFLON£876.00Enquire
55-7646-BSP½"ALUMINIUM/NITRILE£398.00Enquire
55-7647-BSP½"ALUMINIUM/TEFLON£489.00Enquire
55-7645-BSP½"STAINLESS STEEL/NITRILE£887.00Enquire
55-7643-BSP½"STAINLESS STEEL/TEFLON£967.00Enquire
55-76021"PP/NITRILE£787.45Enquire
55-76031"PP/TEFLON£970.00Enquire
55-76061"PVDF/TEFLON£1438.00Enquire
55-7655-BSP1"ALUMINIUM/NITRILE£575.00Enquire
55-7656-BSP1"ALUMINIUM/TEFLON£758.75Enquire
55-7663-BSP1"STAINLESS STEEL/NITRILE£1,207.00Enquire
55-7661-BSP1"STAINLESS STEEL/TEFLON£1,381.00Enquire
55-76151½"PP/NITRILE£1,663.95Enquire
55-76161½"PP/TEFLON£2004.00Enquire
55-76181½"PVDF/TEFLON£3,416.00Enquire
55-7658-BSP1½"ALUMINIUM/NITRILE£809.00Enquire
55-7660-BSP1½"ALUMINIUM/TEFLON£1,213.00Enquire
55-76661½"STAINLESS STEEL/NITRILE£2,168.00Enquire
55-76641½"STAINLESS STEEL/TEFLON£2,446.00Enquire
55-76262"PP/NITRILE£2,240.00Enquire
55-76272"PP/TEFLON£2,631.00Enquire
55-76292"PVDF/TEFLON£4,226.26Enquire
55-7649-BSP2"ALUMINIUM/NITRILE£1,016.00Enquire
55-7650-BSP2"ALUMINIUM/TEFLON£1,442.00Enquire
55-76542"STAINLESS STEEL/NITRILE£2,582.00Enquire
55-76522"STAINLESS STEEL/TEFLON£3,150.00Enquire

Documents

TitleDescriptionDownload
AOD Pumps (x-section and parts list) - 1/4" non-metallicDownload
AOD Pump CAD drawing Bolted DesignDownload
Air Operated Diaphragm Pump dataDownload
AOD Pumps (x-section and parts list) - 1/2" metallicDownload
AOD Pumps (x-section and parts list) - 1/2" plasticDownload
AOD Pumps (x-section and parts list) - 1" metallicDownload
AOD Pumps (x-section and parts list) - 1" plasticDownload
AOD Pumps (x-section and parts list) - 2" plasticDownload
AOD Pumps (x-section and parts list) - 2" metallicDownload
AOD Pumps (x-section and parts list) - 1 1/2" plasticDownload
AOD Pumps (x-section and parts list) - 1 1/2" metallicDownload
