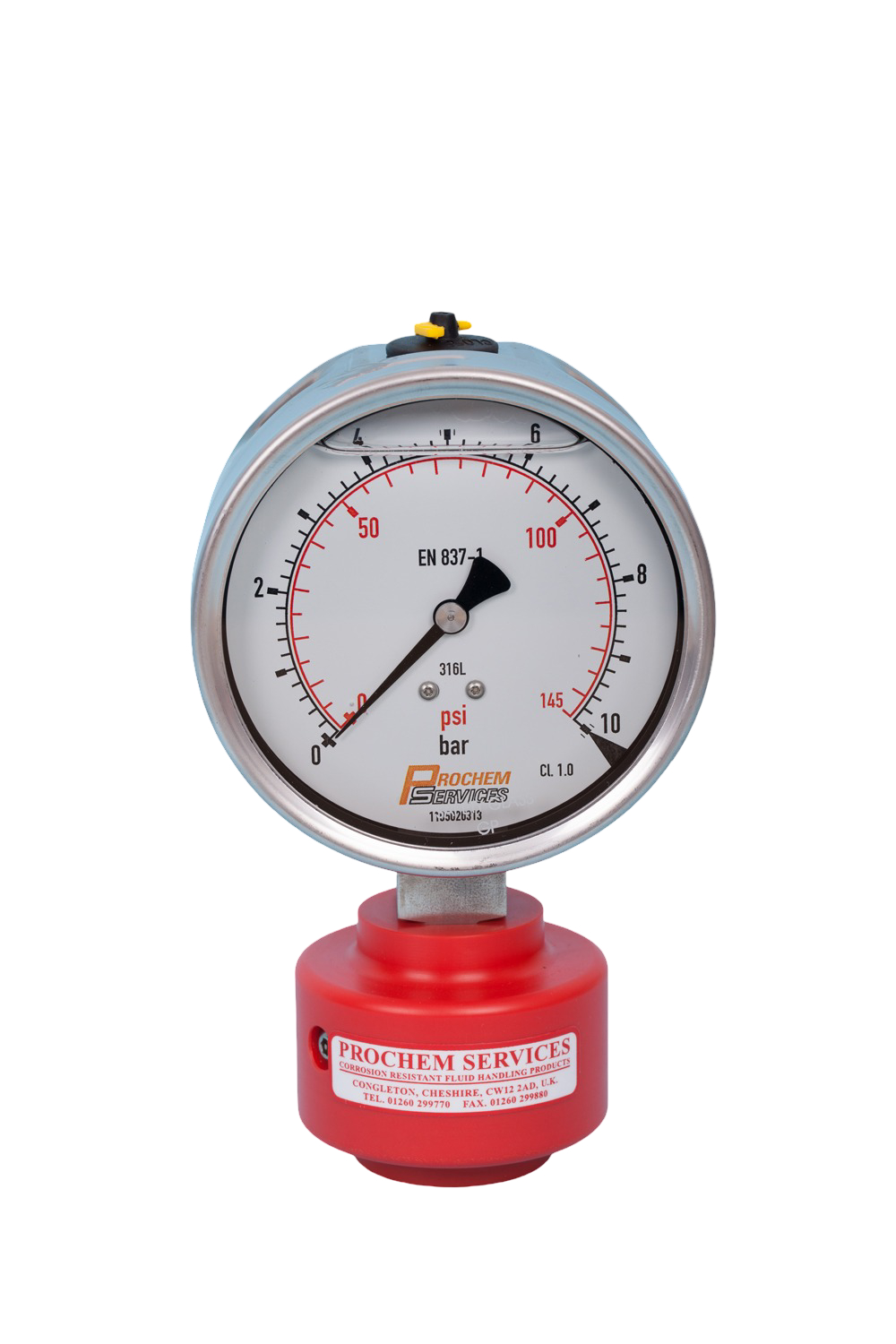

Pressure Gauge

Heavy Duty, all stainless steel construction process pressure gauge,

Nominal Size: 100mm

Ranges: 15 lb/in squared – 30,000 lb/in squared

Pressure connections: 1/4″ – 3/8″ – 1/2″ BSP, BSPT, NPT available.

Pressure Element: 316 stainless steel

Case Material: 304 as standard.  (316 available on request)

Blow out Disk.  Fitted as standard

Availability: Normally 2 to 3 days

Applications: Suitable for almost all measuring mediums and operating conditions.  Also suitable for corrosive environments.

Weather Protection: IP65

Details

CSS ReferenceBody MaterialDiaphragmRange (Bar)PriceEnquire
1/2"-P241-00UPVCEPDM0-10£139.44Enquire
1/2"-P241-02UPVCFPM0-10£147.12Enquire
1/2"-P241-10PPEPDM0-10£141.36Enquire
1/2"-P241-12PPFPM0-10£149.04Enquire
1/2"-P241-20PVDFEPDM0-10£193.20Enquire
1/2"-P241-22PVDFFPM0-10£200.88Enquire
1/2"-P241-30316EPDM0-10£202.80Enquire
1/2"-P241-32316FPM0-10£210.48Enquire

Documents

TitleDescriptionDownload
CSS Data Sheet for Pressure Gauge Download
